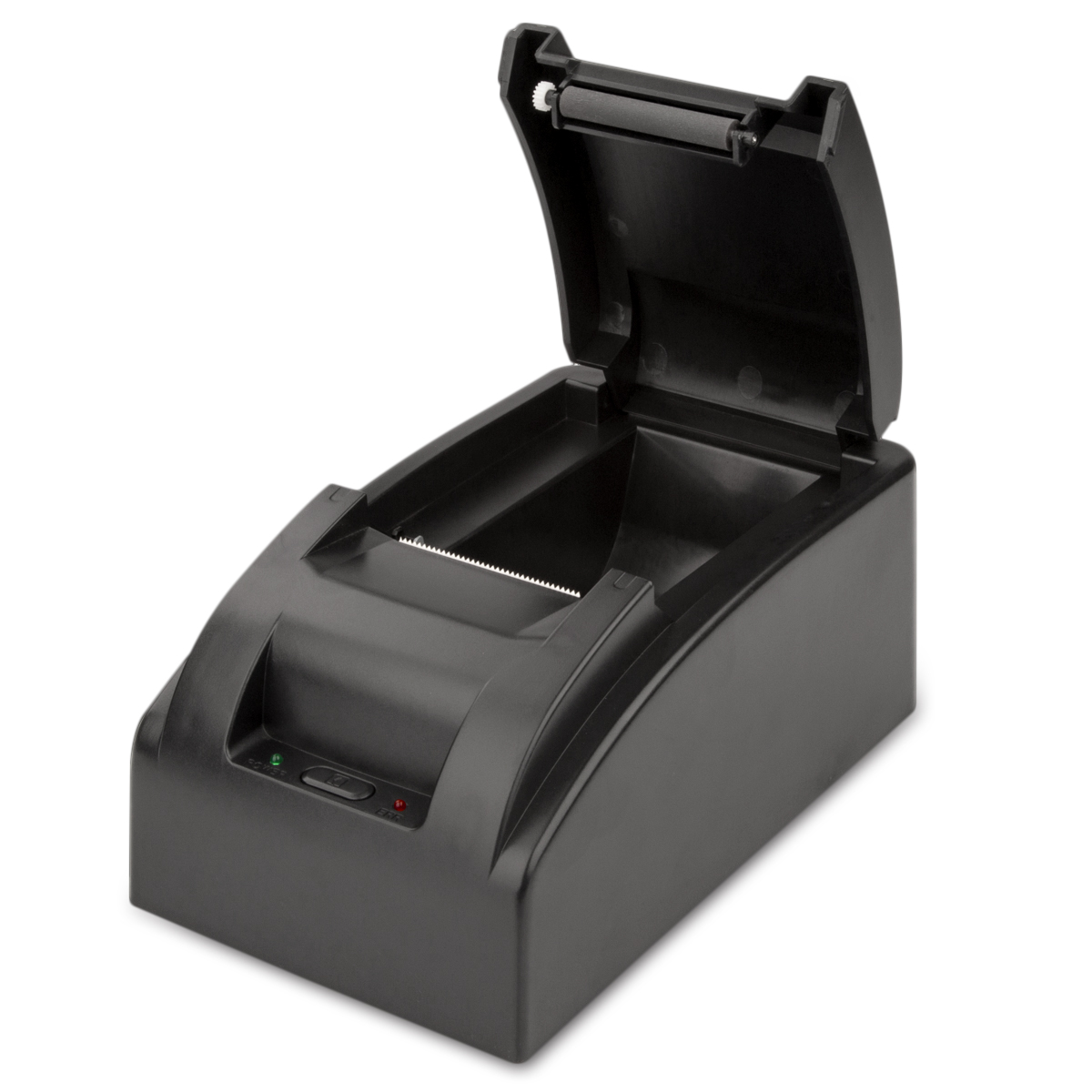

Wireless Lan gprs Printer Fast printing speed 58mm roll paper printer

Before you order the unit,you or your engineer need to know socket comunication.For when you connect the printer with

Print width	48mm
Papaer width	58mm
Point density	384lots / 203*203dpi
print speed	90mm/sec   24 lines /sec
Line spacing	3.75mm
Printing code	ASCII code
Connecting ways	by lan connecting

Print Specification

Direct line thermal printing

No automatic cutter
Print width 48 mm
Point density 384 dots / line (203 × 203dpi)
Print speed 90 mm / sec (24 lines / sec)
Paper 57. 5 ± 0.5 mm * φ65 mm
Line spacing 3.75 mm (available commands to adjust the line spacing)
The number of columns 58mm paper: Font A 32  / Font B 42 columns / Simplified and Traditional 16
Character size ANK characters, Font A 1.5 × 3.0mm (12 × 24 points) Font B 1.1 × 2.1mm (9 × 17 points) Simplified and Traditional 3.0 × 3.0mm (24 × 24 points)
Character barcode

Extended character table PC437 / Katakana / PC850 / PC860 / PC863 / PC865 / West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 / PC866 / PC852 / PC858 / IranII / Latian / Arabic / PT151,1251 / PC737 / WPC1257 / Thai Vietnam / PC864 / PC1001 / (Latvian) / (PC1001) / (PT151,1251) / (WPC1257) / (PC864) / (Vietnam) / (Thai)
Barcode type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CORE39 / ITF / CODABAR / CORE93 / CORE3128
Multilingual support 31 kinds of character support
One-dimensional code printing support
Physical Properties

Input buffer 4K Bytes

NV Flash 60 K Bytes
Power Input AC 110V / 220V, 50 ~ 60Hz Output DC24V / 2A
Power adapter DC24V / 2A
Quality 1.20 kg
Dimensions 1135 × 170 × 115 mm (width × depth × height)
Working temperature: 0 ~ 45 ℃ Humidity: 10 ~ 80%
Storage temperature: -10 ~ 60 ℃ Humidity: 10 ~ 90% (non-condensing)
Reliability 50 km
Product Certification 3C, CE
Quality standard ISO9001

This product can be applicable to GSM850/900/1800/1900 MHz network, a  standalone device no need to PC, can keep in memory up to 50 SMS; Can send out SMS if need, suit for restaurants print order that received from website dispatch and send advertising SMS, shopping on the internet and any other situation where SMS need to be sent to remote party.

Highlights

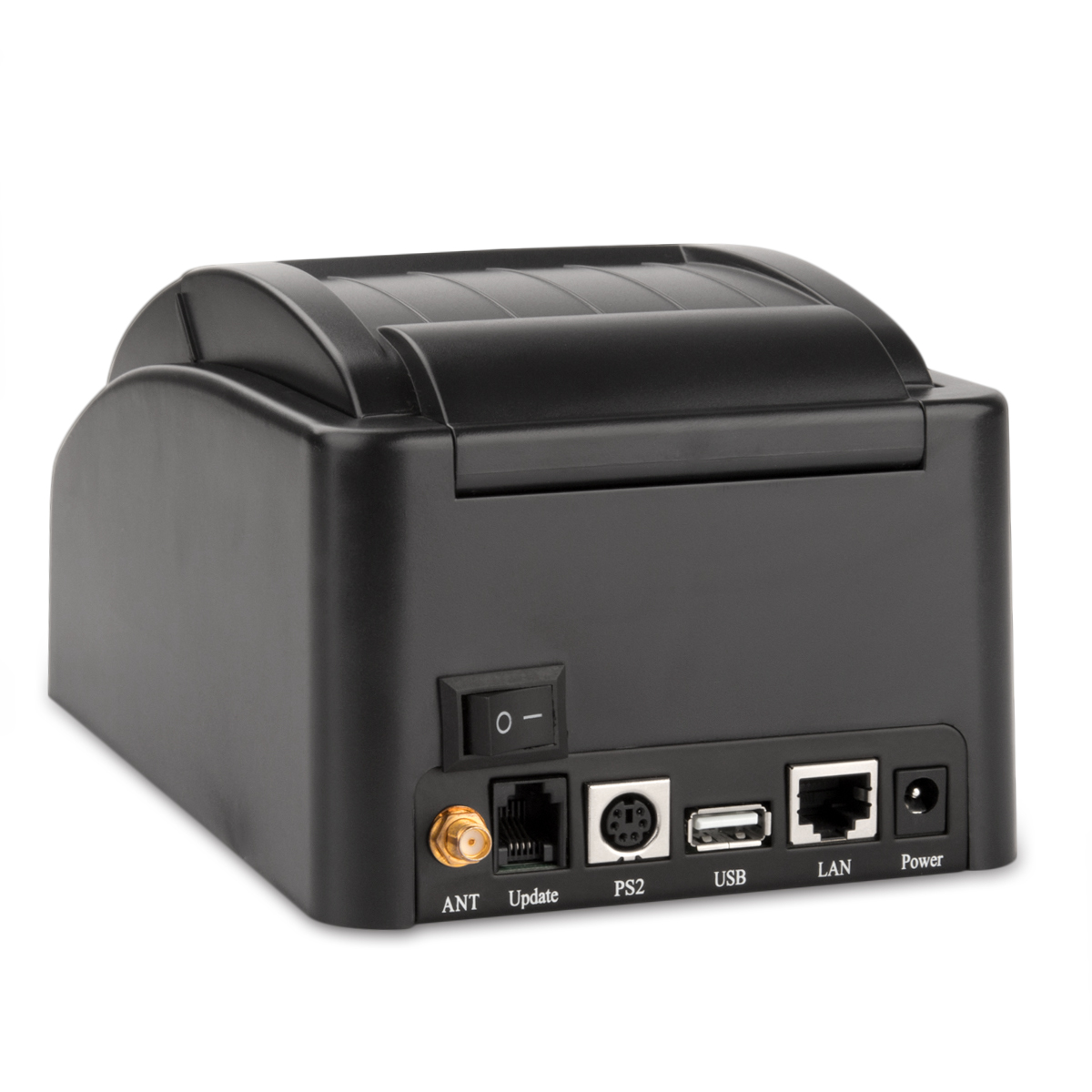

Comunication mode :Lan /Ethernet

Print mode :thermmo sensitive

Pressing the key and then printing a queue number

Replaceable paper

Parameters:

Power souce :   DC12V/3A

Storage temperature:-20~+80

Relative humidity :10%-95%

GSM frquency: GSM850/900/1800/1900MHz[optional]

Sensitivity: -102dBM

Transmitting power:<2w

Printing mode:thernisensitive

Width of printing paper :58mm

Valid printung paper: 48mm

Service life:50KM

Size 30*27*18cm

Weight :about 1.5kg
